Unity3d游戏开发官方入门教程:飞机大战(六)——创建子弹
一、创建子弹对象

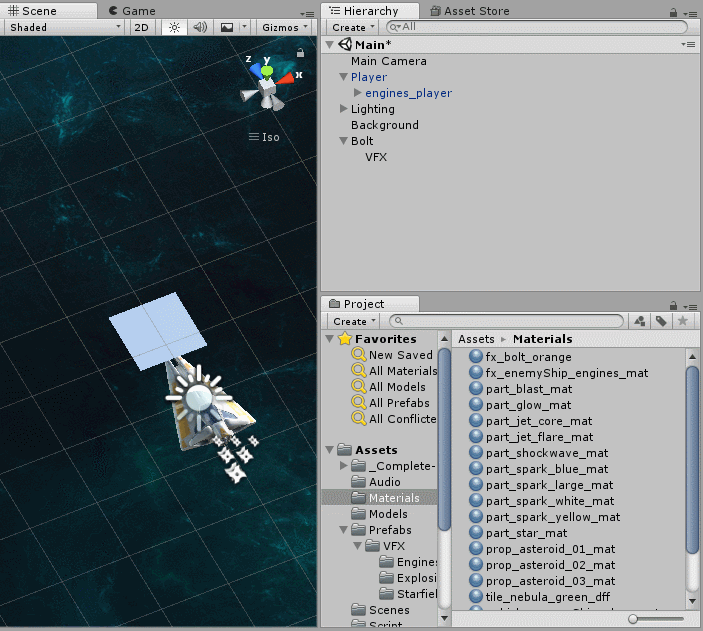

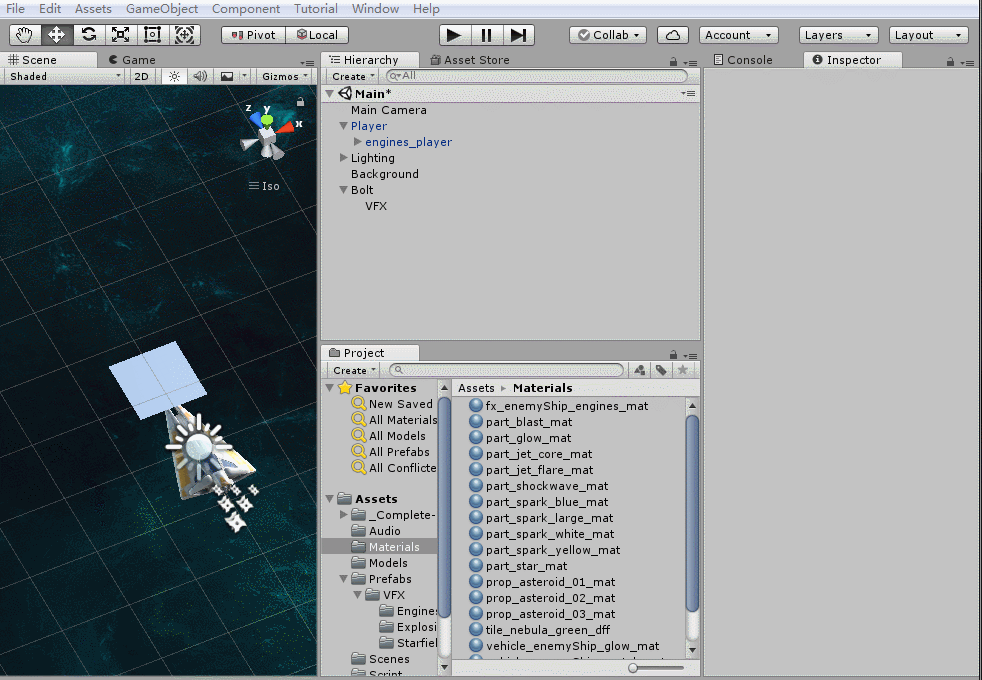

在Player下新建一个GameObject,命名为Bolt,并重置其的Transform在Bolt下新建一个Quad,命名为VFX,重置其Transform,将Rotation-X设置为90
在Assets\Materials文件夹新建一个Material,命名为fx_bolt_orange

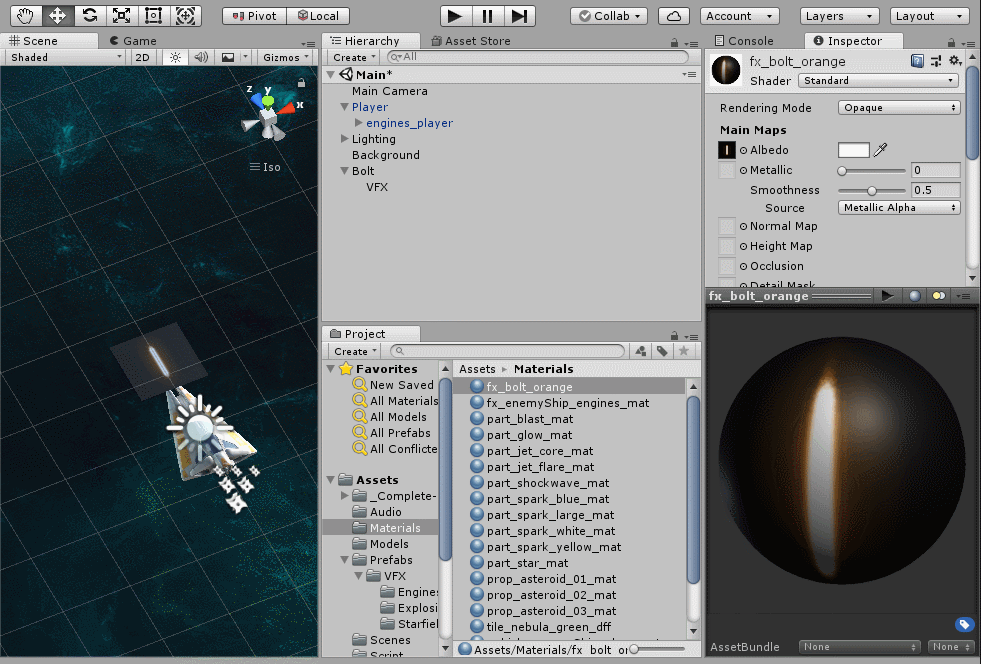

将位于Assets\Textures的fx_lazer_orange_dff拖拽进fx_bolt_orange的Albedo属性栏
将fx_bolt_orange拖拽到Hierarchy中的VFX
默认的shader太暗,将fx_bolt_orange的shader修改为Shader->Mobile->Particles->Additive

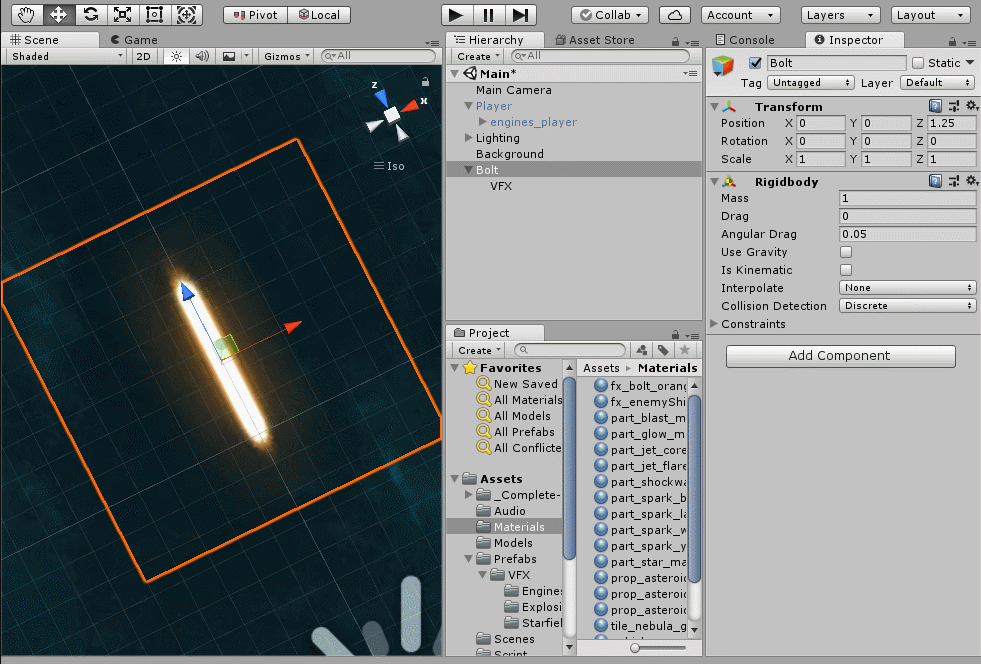

为Bolt增加一个Rigibody:Add Component -> Rigibody,取消勾选Use Gravity,避免子弹掉下屏幕。
移除VFX的Mesh Collider
为Bolt增加一个Capsule Collider,并勾选上Is Trigger,以便实现碰撞检测。
将Direction选择为Z-Axis,Radius设置为0.03,Height设置为0.5
二、创建子弹飞行脚本Mover
Bolt中新建脚本Mover.cs,脚本内容如下:
在Inspector中,将Bolt的Speed设置为20using System.Collections;
using System.Collections.Generic;
using UnityEngine; public class Mover : MonoBehaviour {
public float speed; private Rigidbody rb;
void Start () {
rb = GetComponent<Rigidbody>();
rb.velocity = transform.forward * speed; } }
将Bolt拖拽到Assets\Prefabs中,将其保存成prefab
将Bolt从Hierarchy中移除
运行游戏,将Assets\Prefabs中的Bolt拖拽到Hierarchy中,可见子弹一旦创建就会自动飞行:
